We are a major Pressure Die Casting Dies Manufacturer and Supplier, based in Tamil Nadu (India). We make use of highly advanced Pressure Die Casting Machines while manufacturing these Casting Dies. We hold specialization in manufacturing HPDC Die Casting Die from 60 tons to 800 tons Casting Weights from 50 grams to 4 Kg. Various industrial components are made such as Air Pipe, Frame, Bracket, Housing in various grades and specifications. Clients can place the bulk orders of Pressure Die Casting Dies as per their requirement.

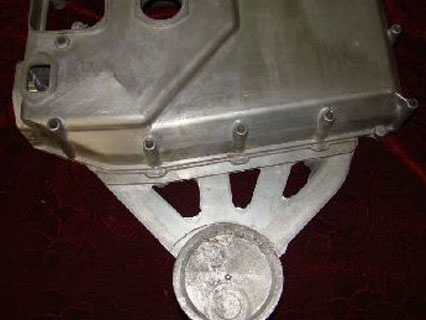

| Component Name : | Gear Box Side Cover |
| Mould Type : | 1 Cavity Pdc |
| Component Weight : | 3.30kgs |
| M/c Tonnage : | 630 Tonne |
| Component Size : | 550x380x100mm |

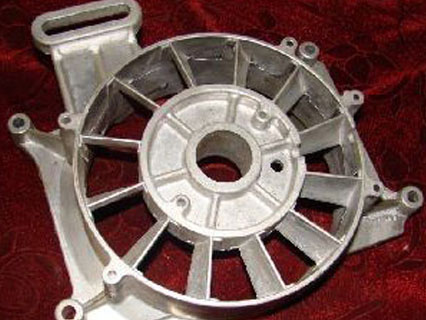

| Component Name : | Fan Bracket |
| Mould Type : | 1 Cavity Pdc |
| Component Weight : | 1.9kgs |
| M/c Tonnage : | 400 Tonne |
| Component Size : | 300x250x100mm |
| Component Name : | Gear Box Side Cover |
| Mould Type : | 1 Cavity Pdc |
| Component Weight : | 3.30kgs |
| M/c Tonnage : | 630 Tonne |
| Component Size : | 550x380x100mm |

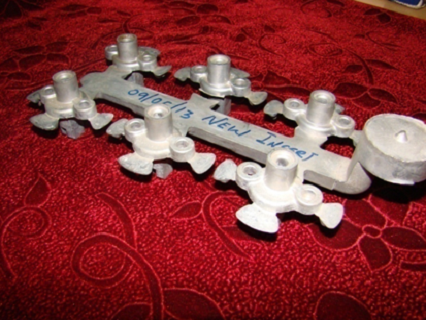

| Component Name : | Pump Body |
| Mould Type : | 6 Cavity Pdc_cold Chamber |
| Component Weight : | 50 Gms/pc |
| M/c Tonnage : | 150 Tonne |
| Component Size : | 50x35x40 |
| Component Name : | Manifold |
| Mould Type : | Cavity Pdc Hot Chamber Zinc |
| Component Weight : | 50 Gms/pc |
| M/c Tonnage : | 90 Tonne |
| Component Size : | 40x40x15 |

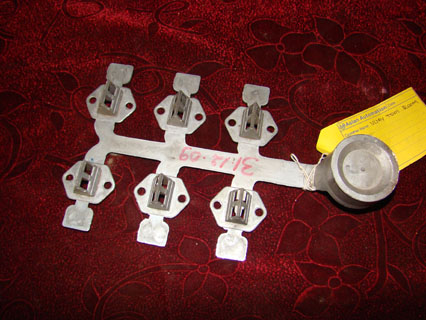

| Component Name : | 5021 Reed Valve |
| Mould Type : | 6 Cavity Pdc |
| Component Weight : | 40 Gms |
| M/c Tonnage : | 120 Tonne |
| Component Size : | 130x90x20mm |

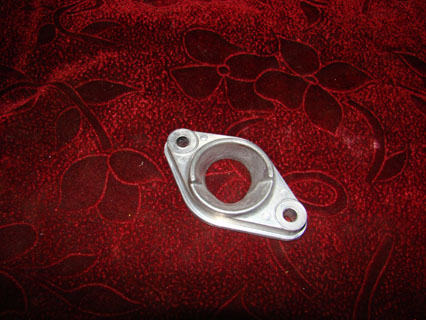

| Component Name : | 7309 Flange |
| Mould Type : | 2 Cavity Pdc |
| Component Weight : | 75 Gms |
| M/c Tonnage : | 120 Tonne |
| Component Size : | 100x80x15mm |

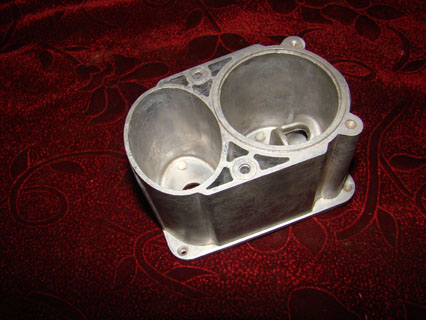

| Component Name : | Top Block Casting |
| Mould Type : | 1 Cavity Pdc |
| Component Weight : | 250 Gms |
| M/c Tonnage : | 220 Tonne |
| Component Size : | 130x120x100mm |

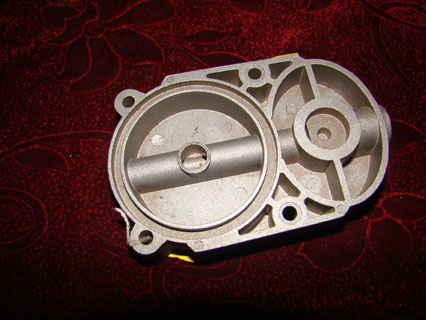

| Component Name : | Bottom Block Casting |
| Mould Type : | 1 Cavity Pdc |
| Component Weight : | 100 Gms |
| M/c Tonnage : | 120 Tonne |
| Component Size : | 130x90x20mm |

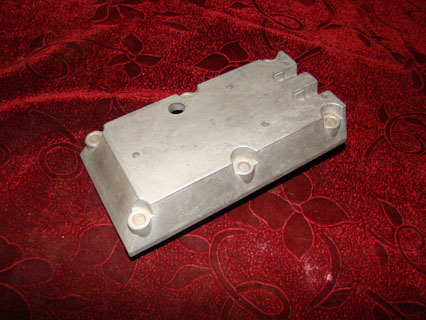

| Component Name : | Magnetic Base |
| Mould Type : | 1 Cavity Pdc |
| Component Weight : | 350 Gms |
| M/c Tonnage : | 250 Tonne |
| Component Size : | 200x120x28mm |

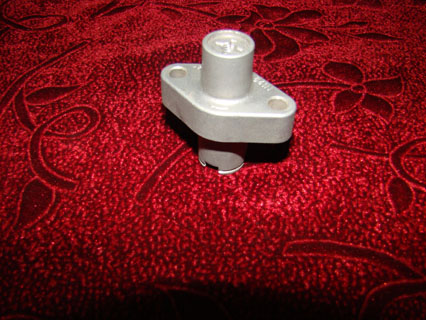

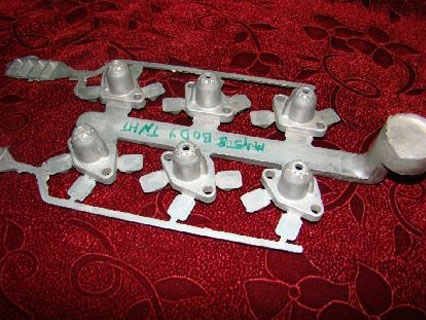

| Component Name : | Pump Body |
| Mould Type : | 6 Cavity Pdc |
| Component Weight : | 50 Gms/pc |
| M/c Tonnage : | 150 Tonne |
| Component Size : | 30x16x15mm |
| Component Name : | Pump Body |
| Mould Type : | 6 Cavity Pdc |
| Component Weight : | 75 Gms/pc |
| M/c Tonnage : | 150 Tonne |
| Component Size : | 60x30x60mm |

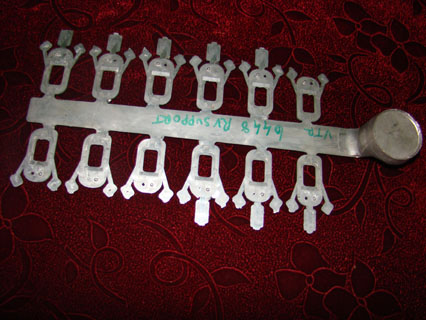

| Component Name : | RV Support |
| Mould Type : | 12 Cavity Pdc |
| Component Weight : | 10 Gms/pc |
| M/c Tonnage : | 150 Tonne |
| Component Size : | 50x20x3mm |

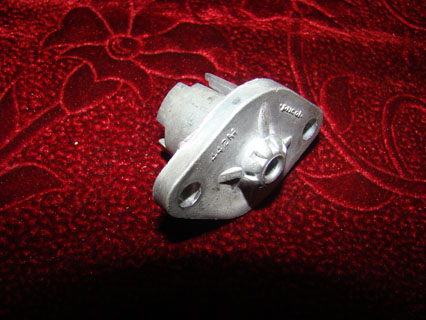

| Component Name : | Pump Body type2 |
| Mould Type : | 6 Cavity Pdc |
| Component Weight : | 75 Gms/pc |
| M/c Tonnage : | 150 Tonne |
| Component Size : | 60x30x60mm |

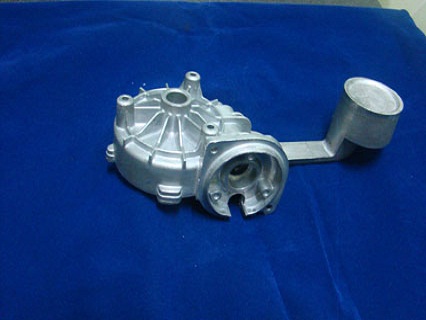

| Component Name : | 7022 Gear Box |
| Mould Type : | 1 Cavity Pdc |
| Component Weight : | 200 Gms/pc |
| M/c Tonnage : | 150 Tonne |
| Component Size : | 120x60x60mm |

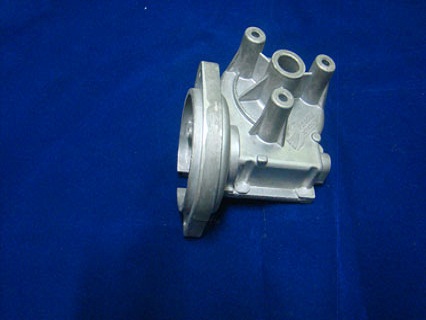

| Component Name : | 6860 Gear Box |
| Mould Type : | 2 Cavity Pdc |
| Component Weight : | 300 Gms/pc |
| M/c Tonnage : | 150 Tonne |
| Component Size : | 120x120x60mm |

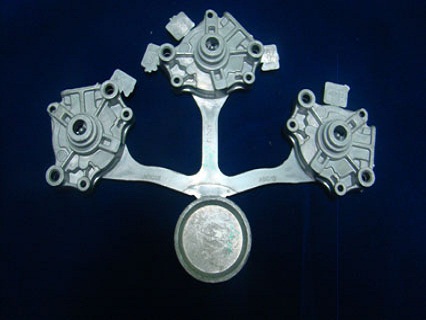

| Component Name : | Mounting Bkt |
| Mould Type : | 3 Cavity Pdc |
| Component Weight : | 75 Gms/pc |
| M/c Tonnage : | 350 Tonne |
| Component Size : | 80x60x20mm |
| Component Name : | Mounting Bkt |
| Mould Type : | 6 Cavity Pdc |
| Component Weight : | 75 Gms/pc |
| M/c Tonnage : | 450 Tonne |
| Component Size : | 80x60x20mm |

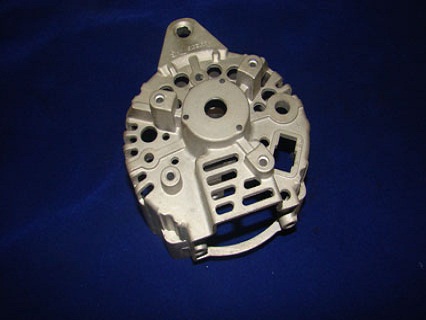

| Component Name : | SRE Bracket |
| Mould Type : | 1 Cavity Pdc |
| Component Weight : | 500 Gms/pc |
| M/c Tonnage : | 250 Tonne |
| Component Size : | 200x160x100mm |

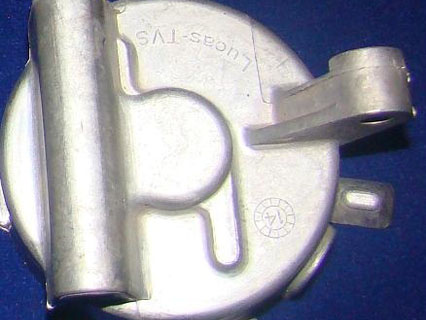

| Component Name : | CE Bracket |
| Mould Type : | 2 Cavity Pdc |
| Component Weight : | 120 Gms/pc |
| M/c Tonnage : | 150 Tonne |
| Component Size : | 90x80x50mm |

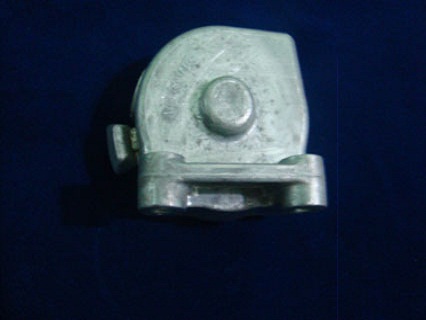

| Component Name : | CE Bracket Type2 |
| Mould Type : | 2 Cavity Pdc |
| Component Weight : | 120 Gms/pc |
| M/c Tonnage : | 150 Tonne |
| Component Size : | 90x80x50mm |
| Component Name : | Mounting Bkt |
| Mould Type : | 1 Cavity Pdc |
| Component Weight : | 850 Gms/pc |
| M/c Tonnage : | 220 Tonne |
| Component Size : | 120x100x70mm |
